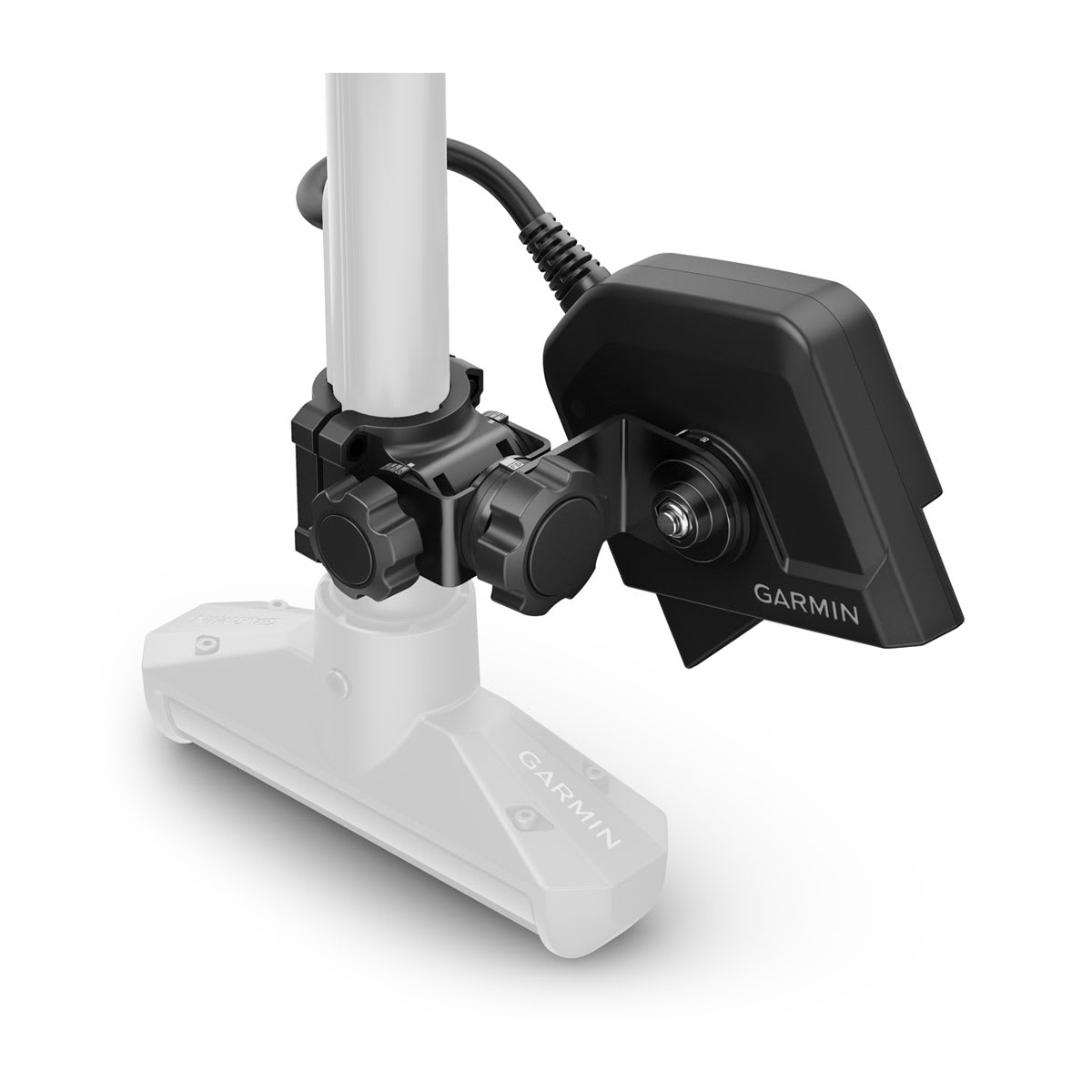

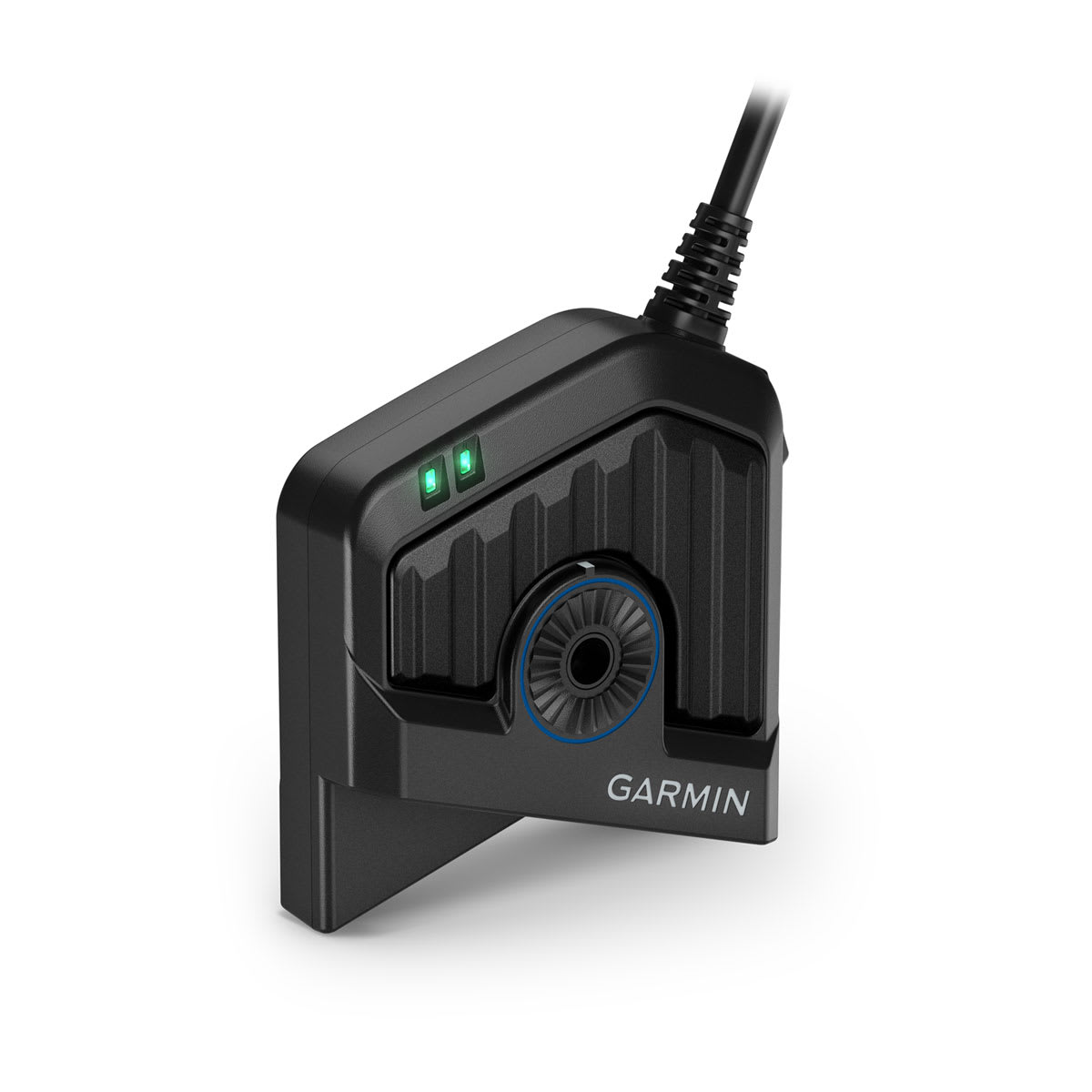

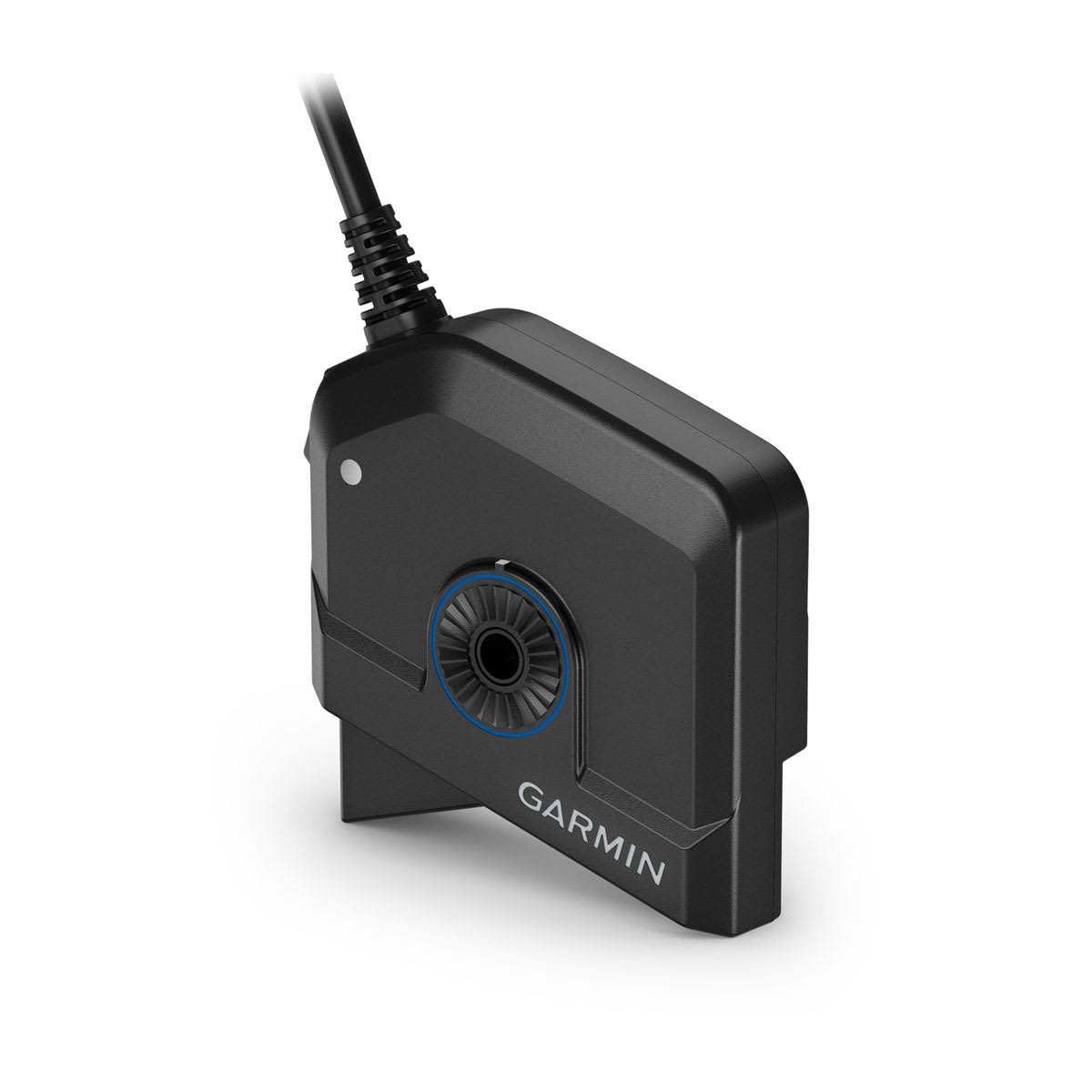

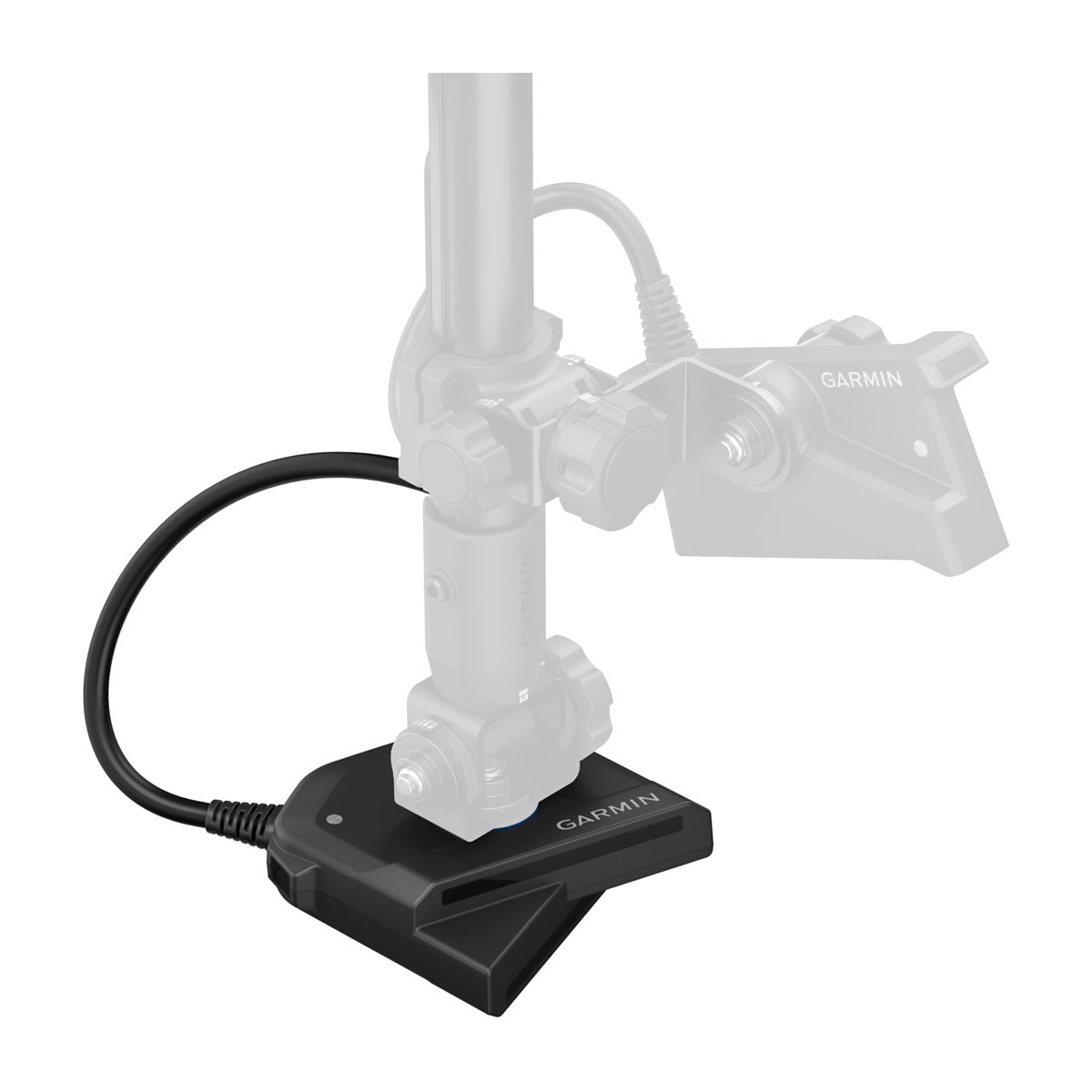

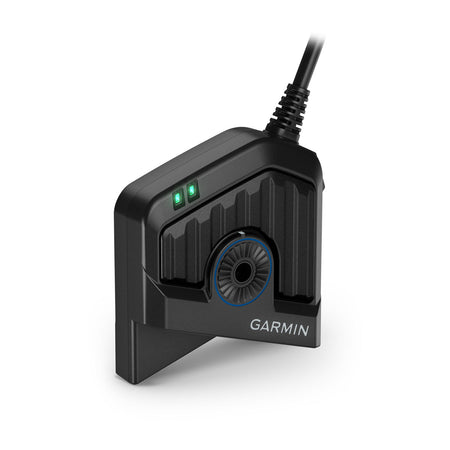

The Garmin LiveScope 2 HD is a live-scanning sonar transducer tuned for the sharpest picture at casting range, so you can watch fish, cover and your lure move in real time. It plugs straight into a compatible Garmin chartplotter and a power source with no separate black box, and built-in image stabilization and improved stitching keep the view smooth. Water detection turns the sonar off when the transducer leaves the water, and a temperature sensor reports water temperature. The adjustable perspective shaft mount in the box lets you fish it in Forward, Down or Perspective mode.
- Model LVS42HD (Garmin part number 010-03899-00)
- Frequency 850 to 1600 kHz, 521 W transmit power; bottom tracking to 125 ft in fresh water
- Beam: 20° x 165° Forward, 20° x 180° Down and Perspective
- 18 ft (5.5 m) transducer cable; 10 to 35 V power input, 32 W max; 3.62 lb
- Includes the transducer, adjustable perspective shaft mount, trolling motor barrel mount, power/network cable with adapter, Force Kraken adapter disc and hardware
